RAC在线式浮游菌采样器

当前位置: 首页 > 产品中心【2024】 > 美国lighthouse > RAC在线式浮游菌采样器
产品名称:RAC在线式浮游菌采样器
产品型号:
产品类别:浮游菌采样器
产品品牌:LIGHTHOUSE
产品特点:
在线浮游菌ActiveCount RAC
产品详情

北京中邦兴业作为美国lighthouse中国区核心代理服务商,拥有厂家正规授权资质证书,可提供 仪器免费试用、仪器校准、租赁、维修等售后服务。更多详情了解可直接拨打:18210736125(微信同号)直接获取相关产品报价及介绍资料。

Designed to meet the industry need for continious trouble free operation and flexible running parameters, the ActiveCountR is the right choice to meet your viable sampling needs.
The ActiveCountR can be operated either via local start/stop button or remotely via software interface.
Utalizing either a side mount or bottom mount 316L stainless steel impactor, the ActiveCountR offers superior sampling flexiability to meet all of your viable sampling needs.

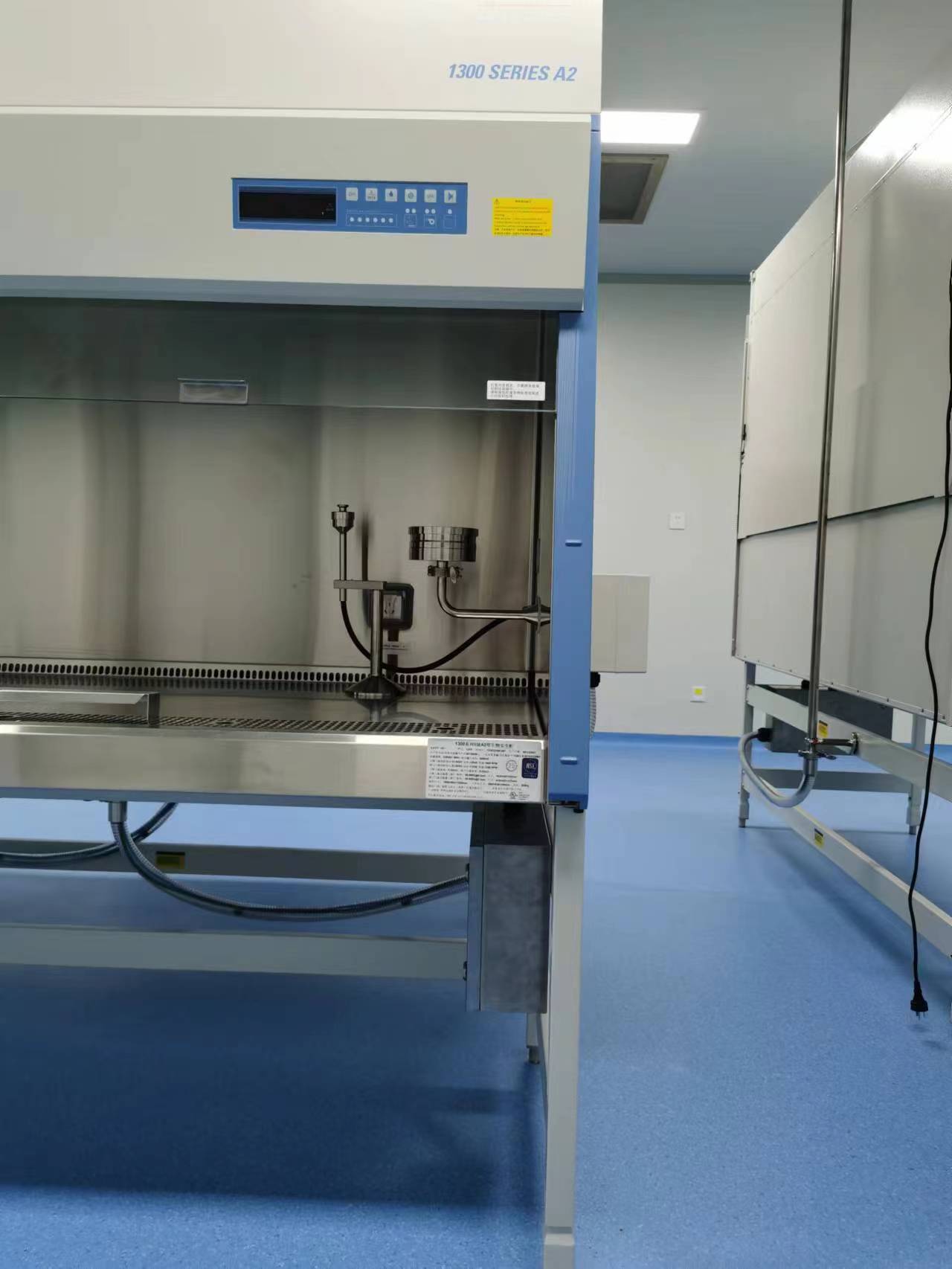

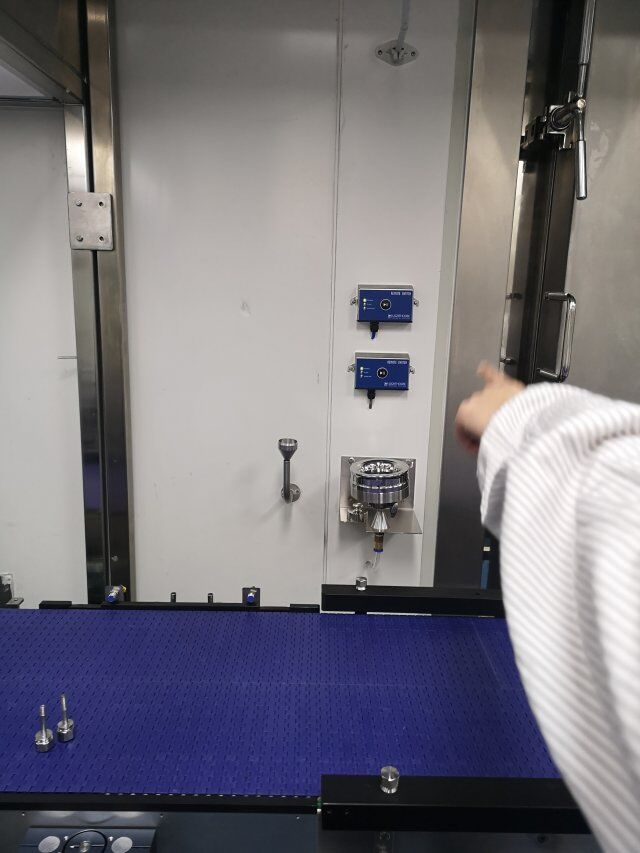

The compact size provides true “plug and play” fuctionality in an easy to use package that quickly integrates into the LMS Pharma or PMS Express real time monitoring systems from Lighthouse.  Whether you are sampling within a cleanroom or inside of a Biosafety Cabinet or Laminr Flow Bench, the ActiveCountP will meet your cGMP compliant monitoring needs.
Designed and built by Lighthouse Worldwide Solutions, a name you can trust.

Features Applications:
  • Designed for ISO 14698 Compliance
  • 1 CFM (28.3 LPM) sample rate
  • Utilizes an external vacuum system
  • Local start/stop control or remote control via software
  • Stainless steel enclosure
  • Single start/stop push button
  • Local LED status indicators
    • Power
    • Flow
    • Sampling
  • Third party validated sampling head
  • 2 Year warranty
  • Remote Controlled Cleanroom and Controlled Environment Biocontamination Monitoring
  • Microbial Monitoring in Aseptic Operations
  • Isolator Monitoring
  • Extend Monitoirng of Viable & Non-Viable Particle Levels in One System



Features
Flow rate 1 CFM
Sampling Methodology Impaction Principle.
Communication Protocol RS-485 Modbus.
LED Indicators Power, Flow, Sampling.
User Interface Manual Start/Stop; Control Software (LMS Pharma, LMS Pro)
Communication Connectors Switch: Liquid-tite cord grip; Controller: RJ45
Enclosure Stainless Steel
Sample Outlet Connection 1/4 “ Barb
Vacuum Requirements 16 in HG
Power 24 VDC
Dimensions Impactor Diameter: 4.41”(11.20 cm), height 2.1“ (5.33 cm)
Dimensions Switch 5.8” (w) x 2.7 (h) x 1.0” (d) [15 x 6.9 x 2.5 cm]
Dimensions Controller W 8.0“ (w) x 5.0 (h) (20.32 cm), H 5.0” (12.7 cm), D 3.0“ (7.62 cm)
Weight Impactor Impactor: 4.4 lbs (2.00 kg)
Weight Switch Switch 0.59 lbs (0.27 kg)
Weight Controller Controller: 2.6 lbs (1.18 kg)
Environmental Conditions
Operating 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing.
Storage 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing.
Accessories
Included Installation guide on CD; power supply, sample tubing.
Optional Printed installation guide; LMS Express, Express RT software, LMS Pharm software, LMS Pro software
