在线浮游菌内置泵ActiveCount RACP
当前位置: 首页 > 产品中心 > 美国LIGHTHOUSE > 在线浮游菌内置泵ActiveCount RACP
产品详情:

在线浮游菌内置泵ActiveCount RACP,适用于洁净区环境在线浮游菌检测与监测

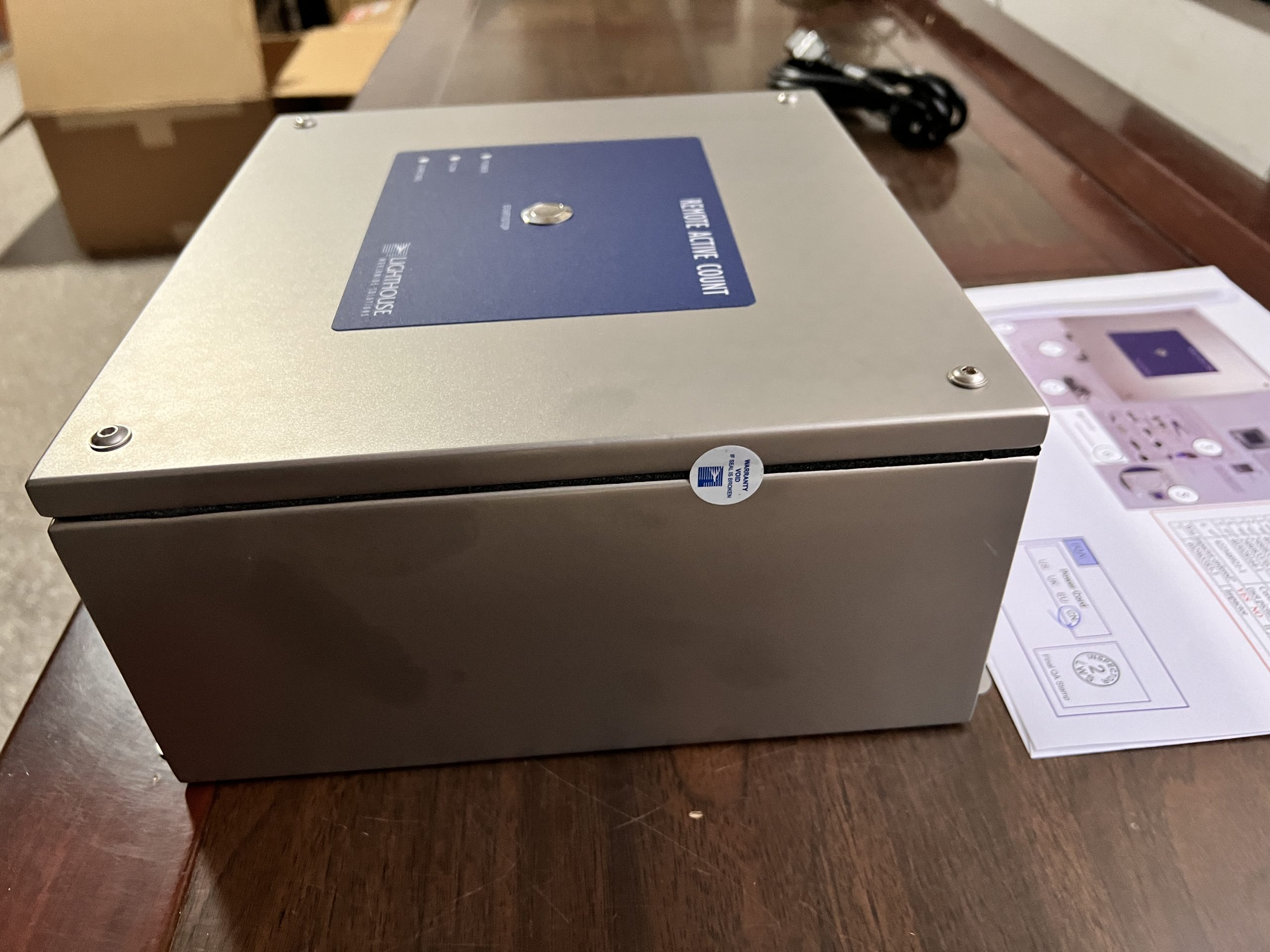

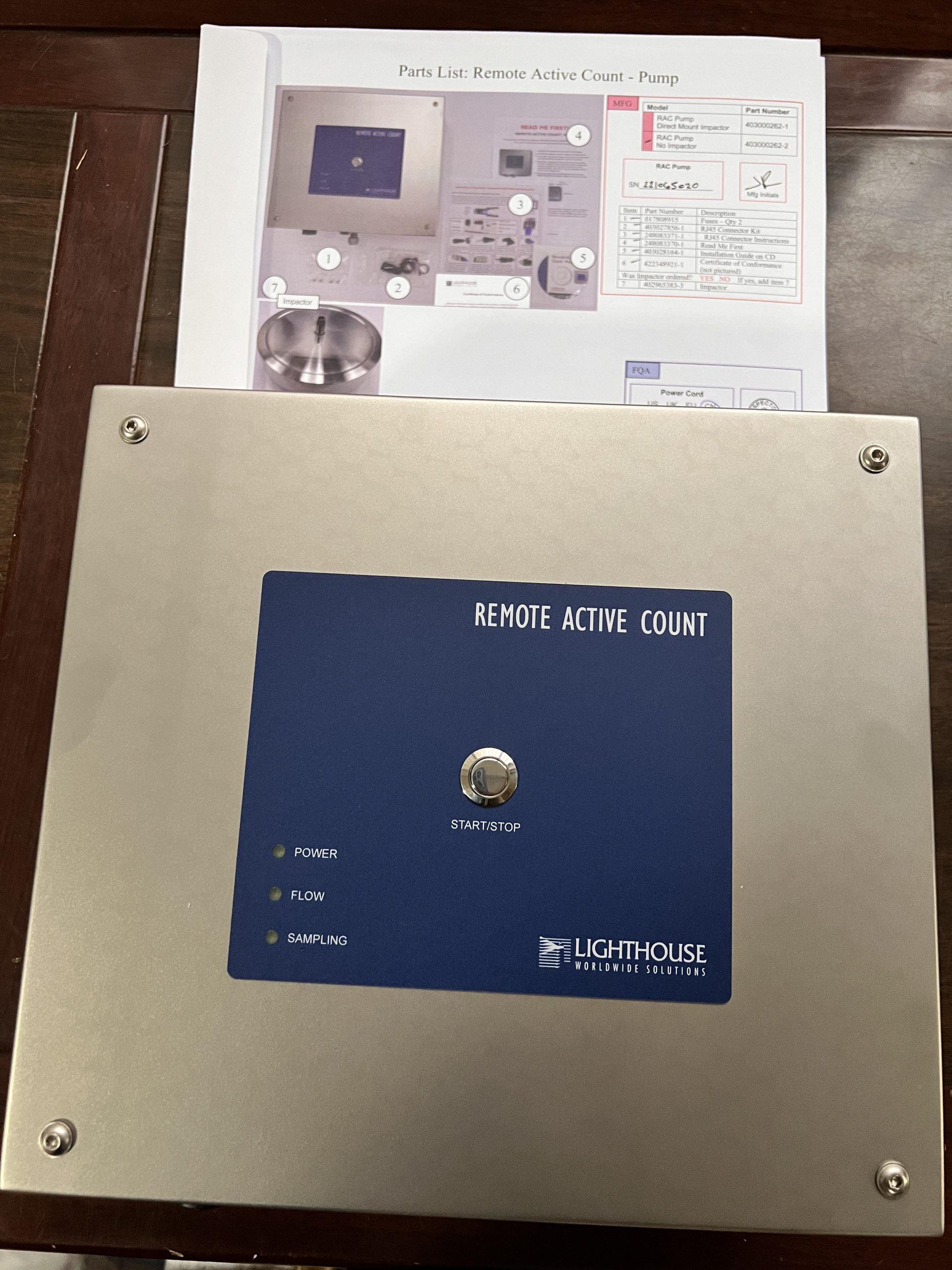

Lighthouse designed the REMOTE ActiveCount to meetthe industry need for continuous trouble-free operation andflexible running parameters.The “RAC”, as it is known, canbe run manually, even when connected to a facility monitoringsystem, and will restore to its previous run state should apower failure occur.

The RAC comes preconfigured with a viable impactorattached,which allows the instrument to be mounted closeto a monitoring point. The impactor sample source can be”remoted”from the RAC using standard sample tubing andan lSO-Kinetic probe.This allows the monitoring of areas toosmall or inconvenient for standard mounting techniques.The compact size provides true “plug-and-play” functionalityin an easy-to-use package that quickly integrates into theLighthouse Pharma or LMS Express Real Time monitoringsystems.Lighthouse provides validation support for all of itspharmaceutical products, including the RAC.

Specifications:

Flow Rate:1 CFM

Sampling Methodology:lmpaction Principle

communication Modes:RS232,RS-485 MODBuS

LED Indicators:Power,Flow , Sampling

User Interface:Manual StartVStop; Control Software (LMS Pharma or LMS Pro)

Communications Connector:Sealed lndustrial RJ45

Enclosure:stainless Steel

Sample Outlet Connection:3/8”” Compression

Vacuum Requirement:Solenoid Valve Model:16inHG Extemal Vacuum SourcePump Model:lntemal – Controlled Clean Pump Technology

Communication Protocol:RS-485 MODBUs

Power:100-240VAC, 50-6OHz; 24VDC

Dimensions:11.00”(w) x 11.00”” (h) x 5″ (d)[27.94×27.94 x 12.7 cm]

Weight:10 lbs (4.5 kg) – Solenoid Valve Model15.1 lbs (6.8 kg) -Optional Pump Model

Environmental Conditions:

Operating:50°F to 104°F(10°C to 40°C)/ 20% to 95% non-condensing

storage:14°Fto 122°F (-10°C to 50C)/ Up to 98% non-condensing

Accessories:

lncluded:Installation Guide on CD; Power Supply (for DC models); Sample Tubing; Industrial R.J45Connector Kit

Optional:Printed Installation Guide; LMS Express, Express RT software; LMS Pharma software

Features:

Designed to lmpact Particles >1.0 um

Manual or Software-controlled Sampling

1 CFM Flow Rate

Manual Override to Pause,Restart orStop Automatic Sampling

Stainless Steel Enclosure

Solenoid Valve or Built-in Pump ModelLED Status Indicators

Auto Power Fail Recovery

RS-485 MODBUS

Facility Monitoring System Interface

Compact Size

Designed for Reliability

Benefits:

2 Year Warranty

Installs in Limited Space

Cost Effective Price Per Point

Easy System Integration

lntemational Support

Validation Support

Low Cost of Ownership

Applications:

Quantifying CFU Concentration

Filter Efficiency Measurements

Trend Analysis using LMS Phama Software

Episodic Event Tracking

Manufacturing Process Control

Continuous System Monitoring
